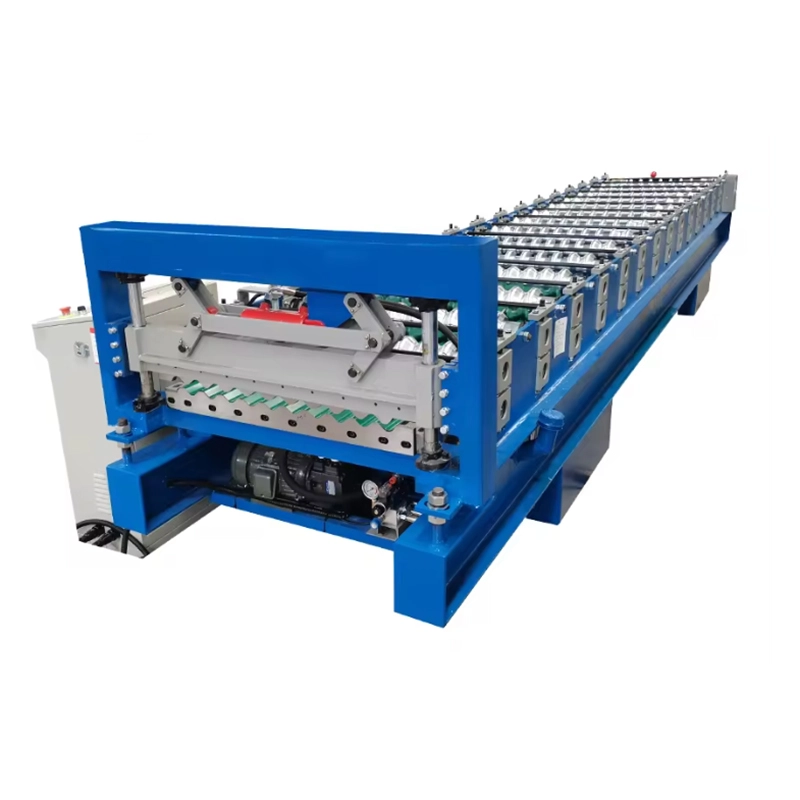

Machine Technical Parameter
No. | Item | Parameter |
1 | Machine size | 7500*1780*1400mm |
2 | Machine weight | 5500kg |
3 | Machine power | 5.5kw |
4 | Hydraulic engine | 2.2kw |
5 | Roll speed | 16-20m/min |
6 | Roll stations | 15-20 |
7 | Roller material | 45#Steel |
8 | Effective width | customized |
9 | Feeding width | 914/1000/1219mm |
10 | Voltage | 380V 50Hz 3PH/Customized |
11 | Material thickness | 0.35-0.65mm/Customized |
12 | Control System | Schneider/Delta/Customized |

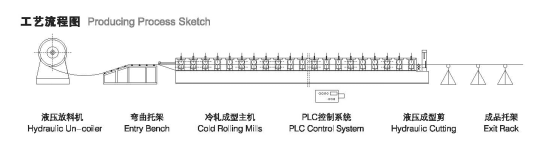

Work Flow
Decoiler→Feeding Guide Device→Pre-Cutting Device→Roll Forming System→Hydraulic Post Cutting Device→Exit Rack

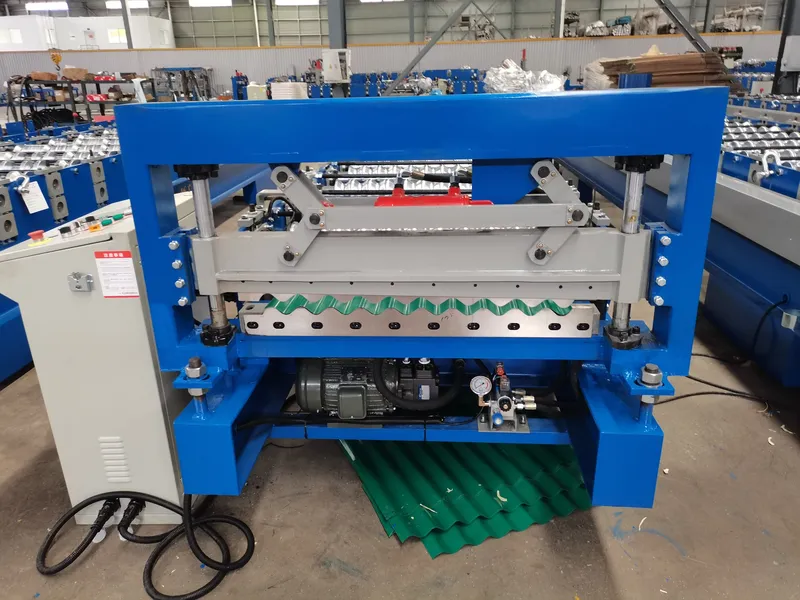

Operational concept
The corrugated plate roll-forming machine operates on a somewhat simple yet effective premise. When the machine is in operating condition, a roll of metal coil is inserted into the feed port, the machine is turned on, and the metal coil is fed through a sequence of properly positioned rollers. The pre-established corrugated template is followed in the arrangement of these rollers. The rollers’ motion will cause the metal coil to progressively distort as it goes through, eventually taking the form of a wavy corrugated plate.
Choosing Metal Sheets
Cold-rolled steel sheets are often used as the raw material for corrugated plates. It is possible to treat various metal sheets based on the requirements and usage environment. Typical materials include of galvanized steel sheets, organic coated steel sheets (also known as color-coated steel sheets), anti-corrosion steel sheets (covered with layers of asbestos asphalt), etc. These materials may be surface-treated to provide a variety of looks and performances in addition to their high strength and durability.

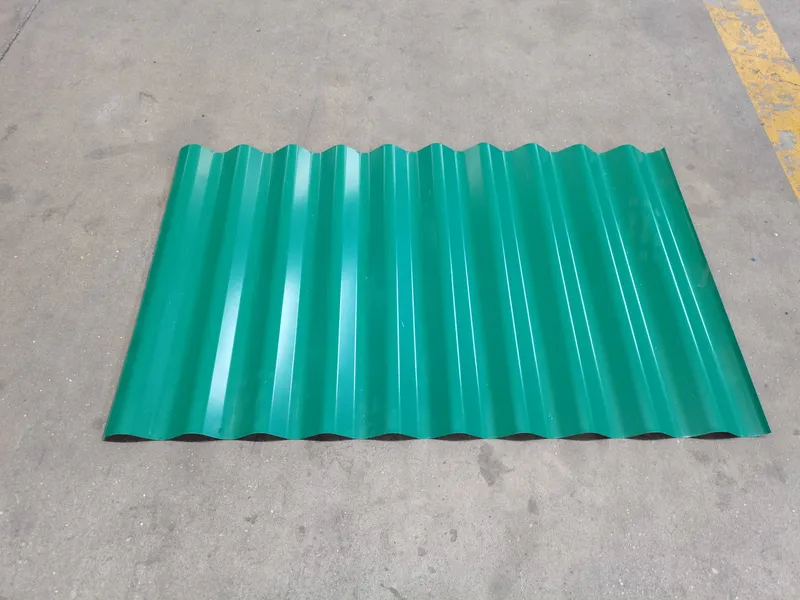

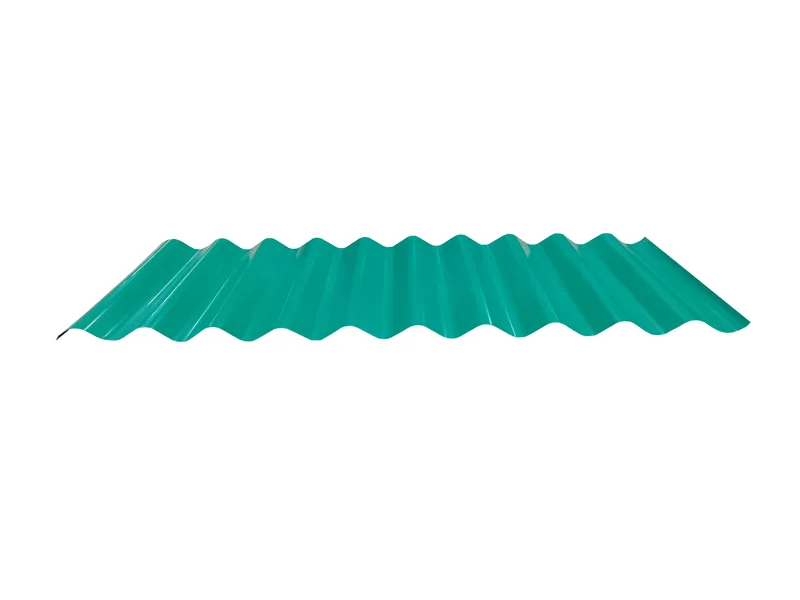

Features of sheets with corrugations
Corrugated metal plates are unique in that they possess a number of noteworthy qualities. In order for the corrugated plates to lower the building’s total weight while maintaining strength, they must first have a low unit weight and a high strength. Second, the corrugated plates can withstand the damage caused by earthquakes and other natural calamities because of their strong seismic resistance. Corrugated plates are also quick to make and have a lovely look, which is why they are utilized extensively in a variety of industries including agriculture, transportation, and construction.
Application
Leading the way in metal processing, our corrugated roller forming machine’s superior high-speed manufacturing capabilities, precise forming technology, and customizable corrugated pattern design precisely satisfy a wide range of design and application requirements, transforming numerous industries.
- With their distinctive form and rich expressiveness, corrugated sheets exhibit very high flexibility and adaptability in the area of interior design. With its own appeal, corrugated sheets may change the interior design of any space—a cozy family room, a productive workplace, or a busy business setting.
- Straight corrugated sheets are definitely the best option for residential construction. They not only break up the monotony of standard white walls, but they also mix in flawlessly with other textures, patterns, and decorations to create a basic but beautiful living space. In addition to adding to the home’s overall attractiveness, this distinctive visual impact gives its occupants a sense of coziness and comfort.
- Corrugated sheets are often used as divider materials in the workplace to subtly segregate several work locations. Its distinctive wave form can efficiently disperse light to create a roomy, light-filled working environment. In addition, the corrugated board creates a striking contrast with the walls made of other materials, giving each room a distinct visual element that preserves the transparency of the space while also lending each place a distinct character and charm.
