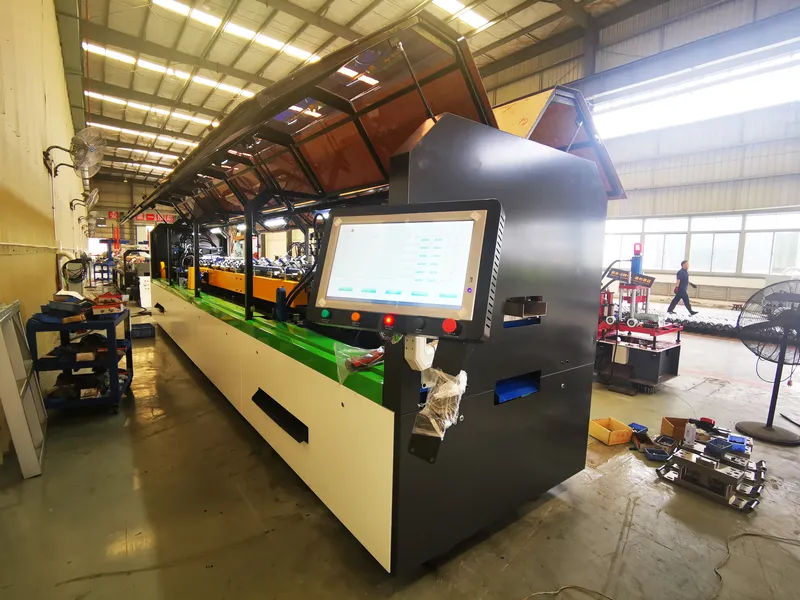

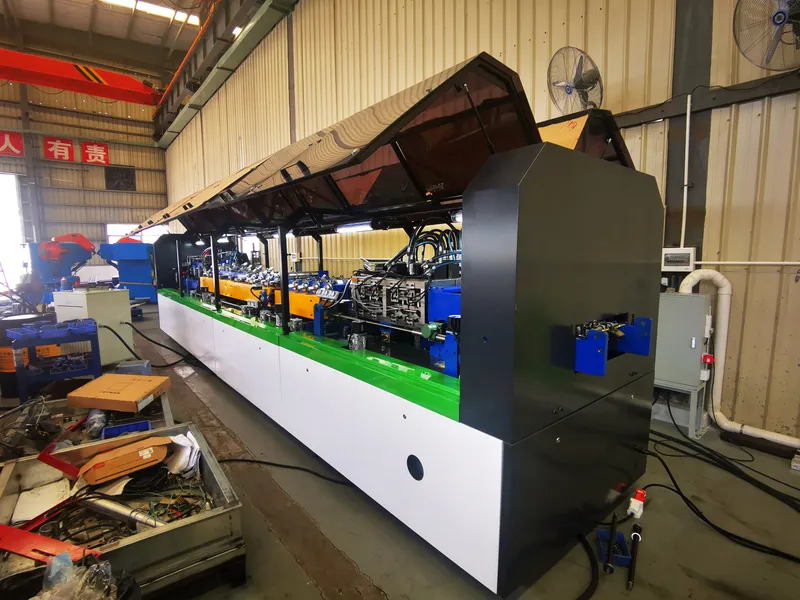

The multiple profiles lgs machine, a miracle of current construction technology, is excellent for 1 to 6 story residential building walls, floors, and roofs. Because of its unique benefits, this equipment’s design has evolved. Because of its rapid and accurate processing, it assures structural soundness and accelerates construction.
With its many uses, the multi-profile light steel frame machine is perfect for constructing 1 to 6-story residential structures in today’s constantly expanding construction sector. This technology may result in accurate and long-lasting light steel frames for walls, floors, and roofs, assuring construction quality and stability. While saving builders time and money, its efficient manufacturing capabilities has shortened building times.
Profile of Multiple C75-200 light steel frame machine Specifications
The light steel frame machine is available in a range of widths (75-92mm), lengths (140-160mm), and thicknesses (0.75-1.0mm). Other options include widths of 92-120mm, lengths of 160-180mm, and thicknesses of 1.0-1.2mm. The maximum size range covers a wide range of widths (120-140mm), lengths (180-200mm), and thicknesses (1.2-1.6mm). These stringent size requirements ensure that goods are diversified and functional enough to meet the needs of different consumers and applications.
C75-200 Multi-Profile Light Steel Equipment Advantages
The C75-200 Multi-head Light Steel Equipment employs new technology and cutting-edge design to automate or semi-automate light steel keel manufacturing, increasing efficiency and quality. This equipment’s exceptional automated size adjustment capacity allows it to swiftly and correctly modify production parameters to match client requirements for light steel structural components.
The C75-200 Multi-head Light Steel Equipment design emphasizes versatility and variety. Its precise mechanical construction and excellent management system allow it to manufacture keels for walls, floors, and roofs, as well as other light steel structural components. The C75-200 Multi-head Light Steel Equipment can handle any design, from basic straight to complex curved, guaranteeing that the completed items match design specifications and perform correctly.
The C75-200 Multi-head Light Steel Equipment is also effective, dependable, and safe. It employs high-quality materials and novel production techniques to assure equipment stability and longevity. The equipment also has a complete safety system to safeguard both workers and equipment during production.
Technical Parameters
| Model | C75-200 |
| Web Size | 75-200mm |
| Profile Height | 41mm |
| Profile Lip | 10-15mm |
| Strip Width | 165-346mm |
| Material Thickness | 0.75-1.6mm |
| Gauge Adjustment | Full Automatic Servo Powered |
| Roll Forming Stations | 17 |
| Comprehensive production speed | 8-15m/min |
| Production Speed(without punching and cutting) | 35m/min |
| Typical Production Output for drywall panel |
600m/h |
| Typical Production Output for roof truss and floor joist |
480m/h |
| Production Speed(without punching and cutting) |
2100m/h |
| Servo Motor
(Brand: Inovance) |
14kw |
| Hydraulic System （Brand： Japan YUKEN） |
11kw |
| PLC (Brand: Japan Panasonic) | Panasonic |
| Power Voltage | 380V/50Hz/3Phase(can be configured as required) |
| Hydraulic Cooling | Yes |
| Machine Size(mm) | 8300x1600x1960 |
| Net Weight | 10T |
| Jet Printer | Standard |
| Design Software | Vertex BD |
| De-coiler Capacity | 3T,Powered |
| Punch/Cutting Accuracy | ±1mm/0.75mm |
Application
The C75-200 multi-lgs machine can accommodate 3 to 8 inches (75 to 200 mm). This machine can simply switch between punch tools to produce steel profiles of various diameters.
The C75-200 light steel keel machine has proven to be an indispensable piece of professional equipment in the construction sector. Light steel keels of this sort are widely utilized in a variety of applications, including meeting all regulations for residential structures ranging from one to six storeys, as well as walls, floors, and roofs for mobile and modular light commercial buildings.
The multifunctional light steel keel machine produces light steel keels that may provide strong structural support to residential constructions ranging from one to six levels, ensuring stability and safety. Because of its great strength and extraordinary corrosion resistance, the structures can withstand degradation from a variety of environmental conditions while simultaneously offering long-term living quarters for tenants.
The multi-light steel frame machine is an essential component of modular and transportable structures. It produces lightweight steel keels that are both easy to install and lightweight, making them ideal for modular buildings, mobile homes, and temporary constructions. These structures provide reliable temporary facility solutions since they are quickly created and removed to meet the needs of varied occasions.
